Custom Spring Manufacturing
Proudly serving a full range of industries, Maverick Spring Makers Limited features custom spring manufacturing and wire forming for a variety of intended applications, such as automotive sub-assemblies, electric motors, machinery, and related products. In order to meet the needs of the industries we serve, we work with many different materials. Music Wire, Stainless Steel Type 302 and Type 17-7PH are among the most common spring materials. Maverick Spring Makers Limited has extensive experience working with Beryllium Copper, Phosphor Bronze, Inconel, and almost everything in between.
We primarily manufacture Compression, Extension, and Torsion Springs, and have both the experience and capability to manufacture many Wire Forms. We work with a select group of qualified sub-contractors to provide an array of finishes to meet your needs, such as colour identification and corrosion protection.
Typical Compression Spring ends are either ground or un-ground. Hook design for Extension Springs, and end design and configuration for Torsion Springs and Wire Forms, is limited only by your needs and imagination. Maverick Spring Makers Limited will work with you to find the most cost effective spring design solution to meet your requirements.
Maverick Spring Makers Limited is equipped to work with wire diameters from .006″ and up, (0.15 mm and up). We have a range of equipment dedicated to set removing, a process which can measurably improve the fatigue life of Compression Springs. We’re also pleased to offer build-to-print Wire Forms, and a range of forming capabilities to accommodate your unique application. To learn more about custom spring manufacturing and wire forming with Maverick Spring Makers, please contact us today.
Portfolio
- Stainless Steel Parking Brake Spring for the Automotive Industry
- Redesigned Music Wire Extension Spring for the Automotive Industry
- Stainless Steel Brush Spring for an Automotive HVAC Fan Motor Application
- Nickel Coated Spring for Automotive EGR Valve
- Redesigned Music Wire Springs for an Automotive Sub-Assembly
Specifications
- Type of Springs
-
Compression
Extension
Torsion
Wire Form

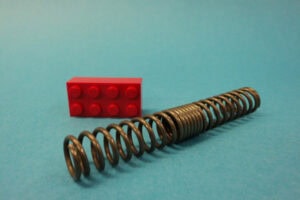

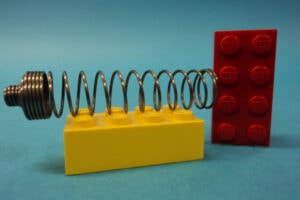

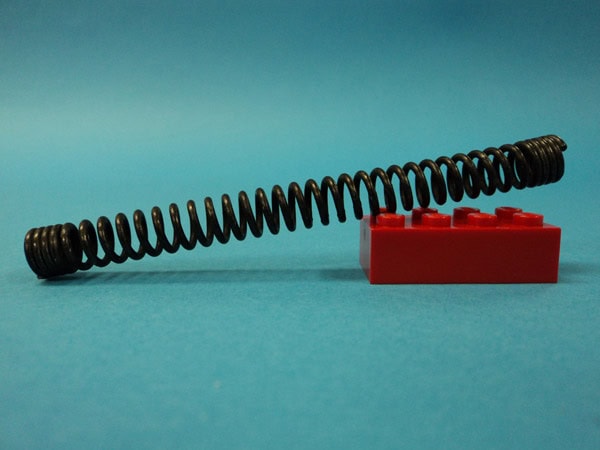

- Compression Springs
-

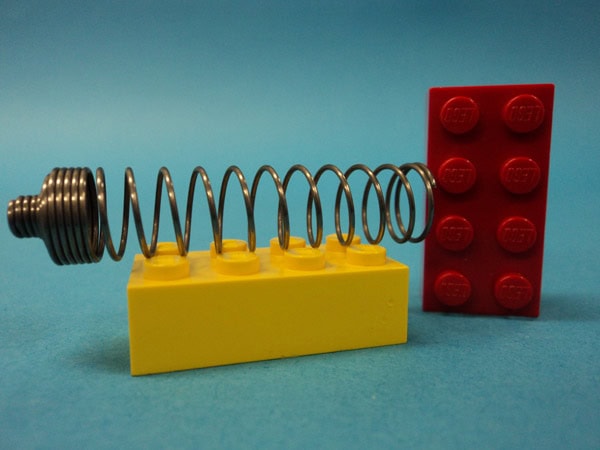

Cylindrical
Barrel
Hourglass

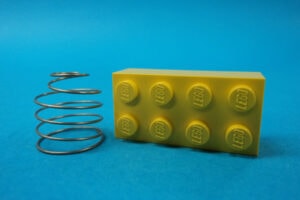

Conical
Battery Contact
Variable Pitch / Variable Rate
Closed End Not Ground
Closed End Ground
Open End Not Ground
Open End Ground
Right Hand Helix
Left Hand Helix
Wire Diameter from 0.006” and up (0.15mm and up)
Spring Index – (Mean Diameter/Wire Diameter) – as low as 3

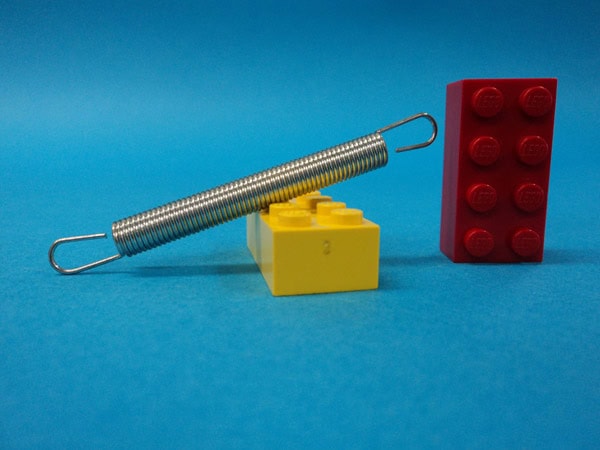

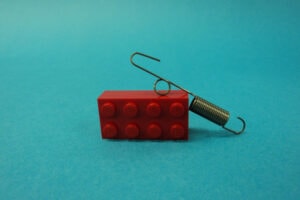

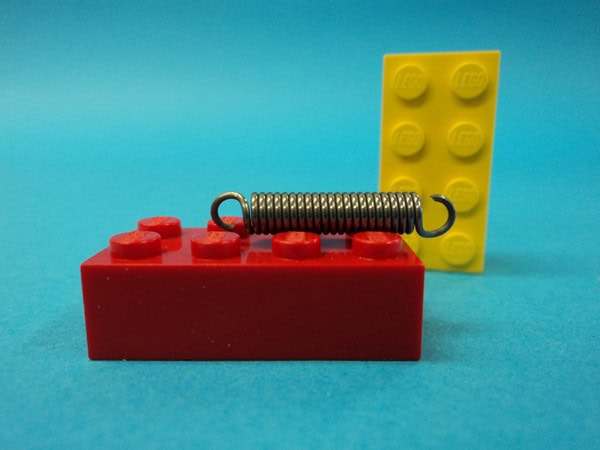

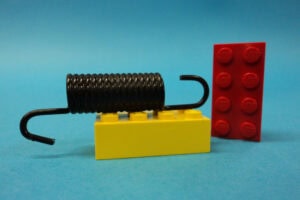

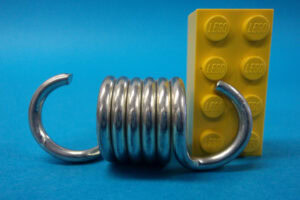

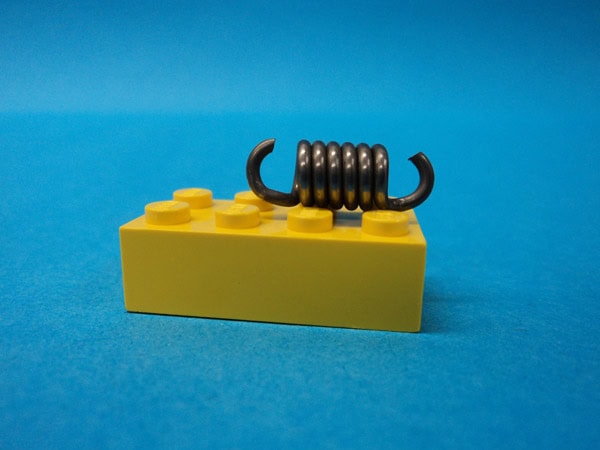

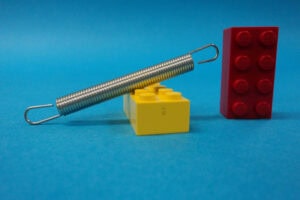

- Extension Springs
-
Machine Hooks
Extended Hooks
German Hooks
English Loops
Crossover Centre Loops
Shepherd Hooks
Accurate Position Control for Hook Angle Relationship
Right Hand Helix Left Hand Helix
Wire Diameter from 0.010” and up (0.25mm and up)
Spring Index – (Mean Diameter/Wire Diameter) – as low as 3

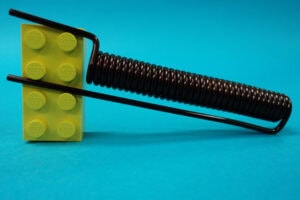

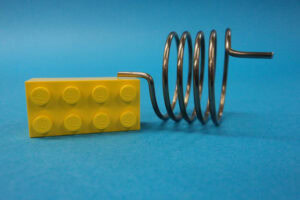

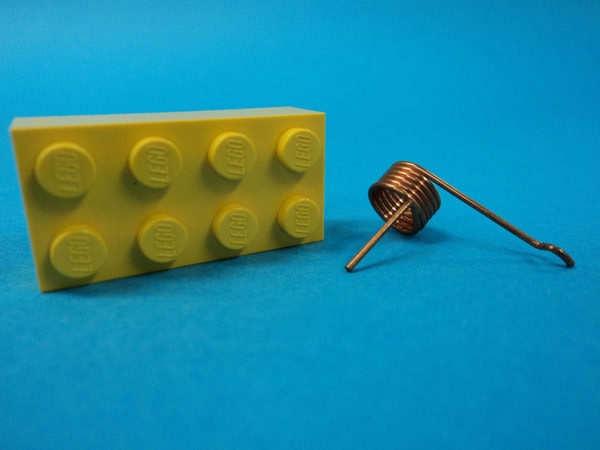

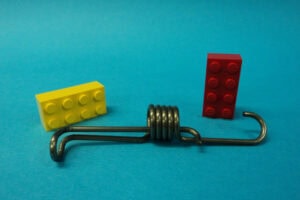

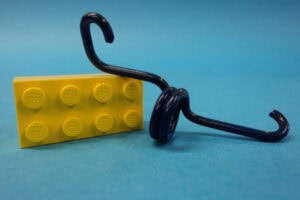

- Torsion Springs
-
Single Torsion
Double Torsion
Leg Design/Shape to suit
Accurate Position Control for Leg Angle Relationship
Right Hand Helix
Left Hand Helix
Wire Diameter from 0.020” and up (0.5mm and up)
Spring Index – (Mean Diameter/Wire Diameter) – as low as 3

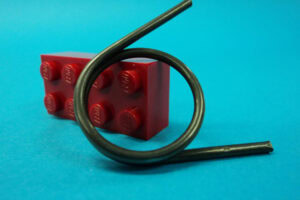

- Wire Forms
-
Shapes to suit
Wire Diameter from 0.020” and up (0.5mm and up)
- Tolerances
-
Commercial Tolerances Easily Met – Tight Tolerance Specialists
- Equipment – Compression
-
CNC & Mechanical Coilers, Automatic Length Control and adjustment on all compression coilers. Proprietary “exact length” coiling system.
- Equipment - Extension
-
Up to 4 axis CNC coiling machines. Automatic probe systems for hook position control.
- Equipment – Torsion/Wireforms
-
Up to 5 Axis CNC Torsion Spring Forming Machines. Automatic position control for accurate leg relationships.
